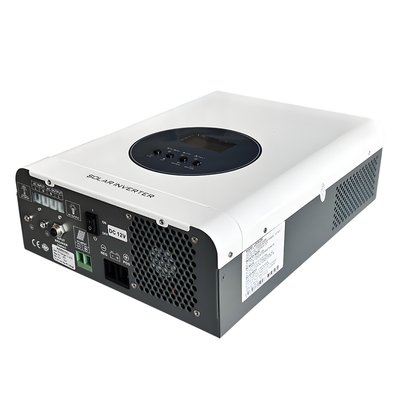

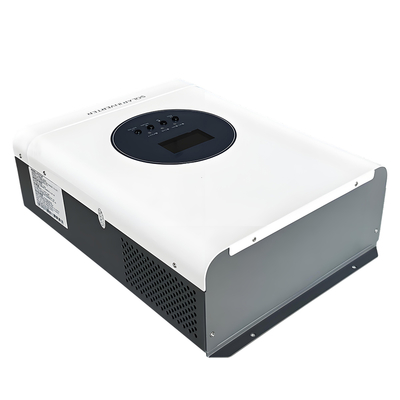

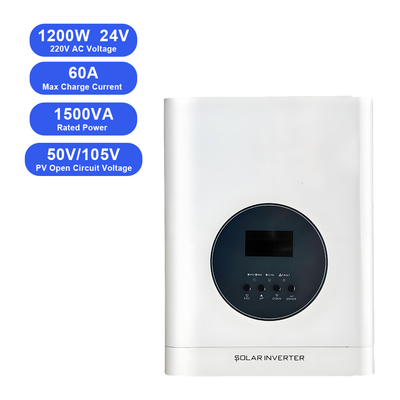

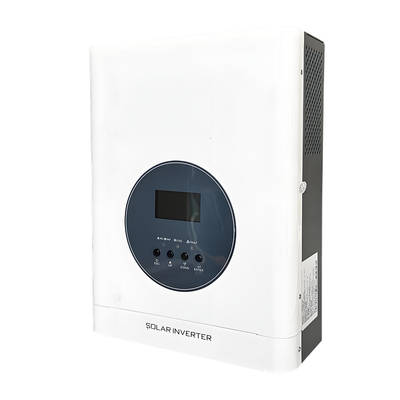

Hybrid Solar Inverter 1.2KW 1200W 24V 110/220V Off Grid All-in-One Solar Inverter for RV, Camping, and Small Home Systems

Hybrid Solar Inverter 1.2KW 1200W 24V 110/220V Off Grid All-in-One Solar Inverter for RV, Camping, and Small Home Systems

Tên thương hiệu: SZSSTH
Số mẫu: UD1524AP
MOQ: 1Pieces
giá bán: $89/pieces
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Liên minh phương Tây, Moneygram
Khả năng cung cấp: 100000pcs/tháng
Thông tin chi tiết
Nguồn gốc:
Quảng Đông, Trung Quốc
Chứng nhận:
CE Rhos BSI
Người mẫu:
UD1524AP
Công suất đầu ra:
1200W
Tính thường xuyên:
50Hz hoặc 60Hz ± 1%
Dạng sóng:
Sóng sin tinh khiết
Điện áp pin:
24VDC
Dòng sạc năng lượng mặt trời tối đa:
60A
chi tiết đóng gói:
Hộp carton
Làm nổi bật:

1.2KW hybrid solar inverter

,

24V off-grid solar inverter

,

RV solar inverter with warranty

Mô tả sản phẩm
Hybrid Solar Inverter 1.2KW 1200W 24V 110/220V Off Grid All-in-One Solar Inverter for RV, Camping, and Small Home Systems
Industry Overview

The renewable energy market is rapidly expanding demand for compact, efficient hybrid solar inverters that blend photovoltaic conversion with battery and grid integration. The 1.2 kW hybrid solar inverter (1200 W) is especially versatile, suitable for residential setups, small commercial systems, and off-grid installations, meeting the need for a reliable, dual-purpose power solution.


Supplier & Brand Profile

This 1.2 kW hybrid solar inverter is offered by a reputable Alibaba supplier recognized for delivering high-quality renewable energy products. The supplier’s offering includes:

  • Hybrid Solar Inverter with MPPT: Combines inverter, solar charge controller, and battery charger functionality, enabling seamless off-grid and backup power operations
  • Guaranteed Reliability: The inverter delivers pure sine wave output, ensuring compatibility with sensitive electronics and smooth performance
  • Efficiency & Certification: Offers 85 % inverter efficiency, MPPT efficiency up to 99 %, and includes CE and RoHS certifications for international standards compliance
  • User-Friendly Design: Features LCD/LED display panels for clear monitoring and intuitive control. Backed by a 12-month warranty, emphasizing quality assurance

This supplier excels in combining efficient design with global market standards, ensuring credibility and attractive value for buyers.


model UDI012AP UDI512AP UD1524AP UD2024AP UD3024AM UD5048AM UD6348AM U012548AM UD10048AM
Ac input voltage 220VAC(standard) 220VAC(standard)
Input voltage range 154-264VAC+3V(Nor Model)185-264VAC+3V(UPs model)
110V:77-132VAC+3V(Nor Model)92-132VAC±3V(UPs model)
Input frequency 50/60Hz±5% 50/60Hz±5%
Output power 1000VA
800W
1500VA
1200W
1500VA
1200W
2000VA
1600W
3000VA
2400W
5000VA
4000W
6300VA
5000W
10000VA
8000W
12500VA
10000W
AC model output Voltage The output voltage under the mains is thesame as the input voltage
Battery model output voltage 220VAC+10%(Custom110VAC+10%)
Battery model output frequency 50HZ or 60HZ±1%
Battery model output wave Pure sine wave
Battery type External lead-acid battery,Gel battery,water battery or Lithium battery
Battery voltage 12VDC 12VDC 24VDC 24VDC 24VDC 48VDC 48VDC 48VDC 48VDC
Battery charging voltage 13.7VDC 13.7VDC 27.4VDC 27.4VDC 27.4VDC 54.8VDC 54.8VDC 54.8VDC 54.8VDC
Maximum PV array power 12V:800W 24V:1600W 48V:3200W 48V:6400W
Solar input voltage range 12V:PWM 15V-50VDC
24V:PWM 30V-105VDC
24V:MPPT 30V-150VDC
48V:MPPT 60V-150VDC
Maximum PV Display
Open Circuit Voltage
12V: PWM 50VDC
24V: PWM 105VDC
24V:MPPT 150VDC
48V:MPPT 150VDC
Maximum solar charging current 60A 120A
Maximum AC Charge Current 27A 40A 20A 30A 60A 40A 50A 80A 100A
load peak ratio (MAX)3:1
Protective function Under themains:input overcurrent fuse
Under inverter: overload protection,short circuit protection, low voltage protection
(with battery anti-reverse connection, board).
Status Display You can view parameters such as Ac voltage, Ac frequency, PVvoltage, Pv current, output voltage
output frequency, battery voltage, load current and other parameters by turning the page keys.
Voice prompt Low batteryprotection ouzzerlona peep
Low batterybuzzer beeps every second
Machine fault buzzer beeps
Overload buzzer beeps
When the overload is less than 130%, the buzzer will sound every second,and
the output will be turned off after 30s. When the overload is greater than150%.the output will be turned off after 300ms.
Operating temperature 0°C~40℃
Storage temperature -15°C~45°C
Relative temperature -10°C~90℃C no condensation
Noise <45dB
size(L*W*H)mm 465*310*135MM 545*400*200MM
Product Advantages
Multi-Functional Hybrid System

Combines inverter, solar charger, and battery charger into one compact unit with MPPT control—ideal for off-grid, backup, or hybrid power systems

Clean & Stable Power

Produces pure sine wave output, delivering clean, stable electricity safe for all sensitive electronics, including computers, appliances, and medical equipment

High Performance & Energy Optimization

− Inverter efficiency around 85 % ensures effective energy conversion.
MPPT efficiency of approximately 99 % maximizes energy extraction from solar panels

Compact & Accessible Interface

Equipped with LCD and LED displays, the inverter simplifies operation and real-time monitoring with clear insights into battery status, power flow, and charging priorities

Reliability with Certification

CE and RoHS certifications guarantee adherence to quality, performance, and safety standards. A 12-month warranty further reinforces product confidence


Applications & Use Cases
  • Residential Off-Grid Systems: Ideal for homes lacking reliable grid access—powers lighting, fans, devices, and appliances with both solar and battery support.
  • Small Commercial & Retail Installations: Suited for small shops, remote offices, or community facilities that demand uninterrupted, clean power.
  • Emergency Backup Power: A compact choice for backup systems during grid failures, ensuring continuous power for essentials like refrigeration and communication.
  • Mobile & Off-Grid Projects: Great for cabins, field camps, rural clinics, or temporary sites that need a robust, self-sustaining power platform.
  • Hybrid Renewable Setups: Blends solar, battery, and grid sources intelligently, making it a smart component in modern hybrid energy systems for homes or buildings.
