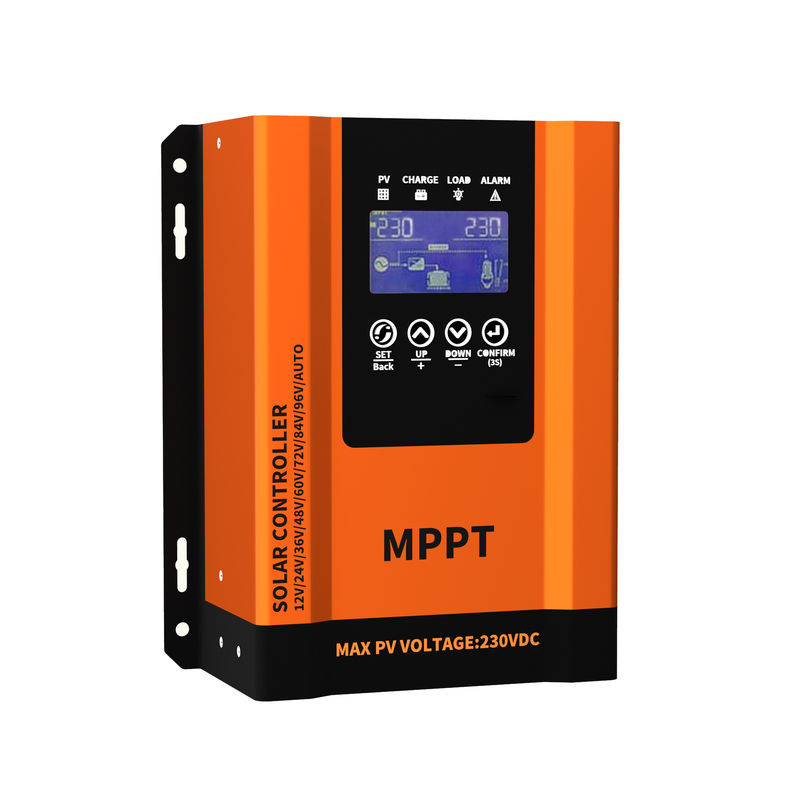

MPPT Solar Controller 30A-60A 12V-48V with 97% Efficiency

MPPT Solar Controller 30A-60A 12V-48V with 97% Efficiency

Tên thương hiệu: SZSSTH
Số mẫu: SSTH-30
MOQ: 1 pieces
giá bán: $55-77/pieces
Điều khoản thanh toán: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Khả năng cung cấp: 5000 piece/month
Thông tin chi tiết
Place of Origin:
Guangdong, China
Chứng nhận:
CE RHOS BSI
Type:
MPPT
Max PV Power:
auto tracking the max power
Rated Current:
30/40/50/60A
MPPT efficiency:
97%
Protection level:
IP 21
Charge mode:
MPPT automatic Max power tracking
Packaging Details:
color box
Làm nổi bật:

MPPT solar controller 30A with 97% efficiency

,

60A MPPT solar controller 12V-48V

,

high efficiency MPPT solar charge controller

Mô tả sản phẩm
Upgraded MPPT Solar Charger Regulator 12V 24V 36V 48V 30A-60A for Off Grid Power Storage
Product Attributes
Attribute Value
Type MPPT
Max PV Power Auto tracking the max power
Rated Current 30/40/50/60A
MPPT efficiency 97%
Protection level IP 21
Charge mode MPPT automatic Max power tracking
Smart Battery Management for Extended Battery Life

Featuring a 4-stage charging process (bulk, absorption, float, equalization), the controller prevents overcharging and deep discharging, which can extend battery life by up to 200%. Temperature compensation (-20°C~60°C) ensures safe and stable charging even in extreme environments.

Product Overview
1. Advanced MPPT Technology with 99% Tracking Efficiency
  • Intelligent Maximum Power Point Tracking (MPPT) extracts 30% more solar energy than PWM controllers
  • Auto-adjusts to weather conditions (cloudy/sunny) for optimal charging performance
2. Wide Compatibility for Multiple Battery Types & Voltage Systems
  • Works with 12V/24V/36V/48V lead-acid (sealed/GEL/flooded) & lithium batteries (LiFePO4 optional)
  • High PV input voltage (100V DC Max) supports series-connected solar panels
3. Smart Battery Management to Extend Battery Life by 200%
  • 4-stage charging (bulk/absorption/float/equalization) prevents overcharge/discharge
  • -20°C~60°C temperature compensation ensures safe operation in extreme environments
4. Military-Grade Protection System
  • Triple reverse polarity protection (PV/battery/load)
  • 4000V lightning surge protection for outdoor installations
  • Over-current/short-circuit/overheat protection with auto-recovery
5. User-Friendly Operation
  • 3.2-inch LCD display shows real-time data: PV voltage/charging current/battery temp
  • Dual USB outputs (5V/3A) for fast-charging phones/tablets
  • Optional Bluetooth/WiFi module for remote monitoring via app
MPPT Solar Controller 30A-60A 12V-48V with 97% Efficiency 0
Ideal Applications
Home Solar Systems - Perfect for cabins and off-grid homes
RV & Marine Power - Compact design for mobile installations
Telecom Stations - Reliable performance in remote locations
Agricultural Water Pumps - Handles high-power irrigation systems
Why Choose Our MPPT Controller?

5-Year Warranty - Industry-leading reliability

IP32 Waterproof Rating - Suitable for outdoor use

OEM/ODM Available - Custom branding and specifications
